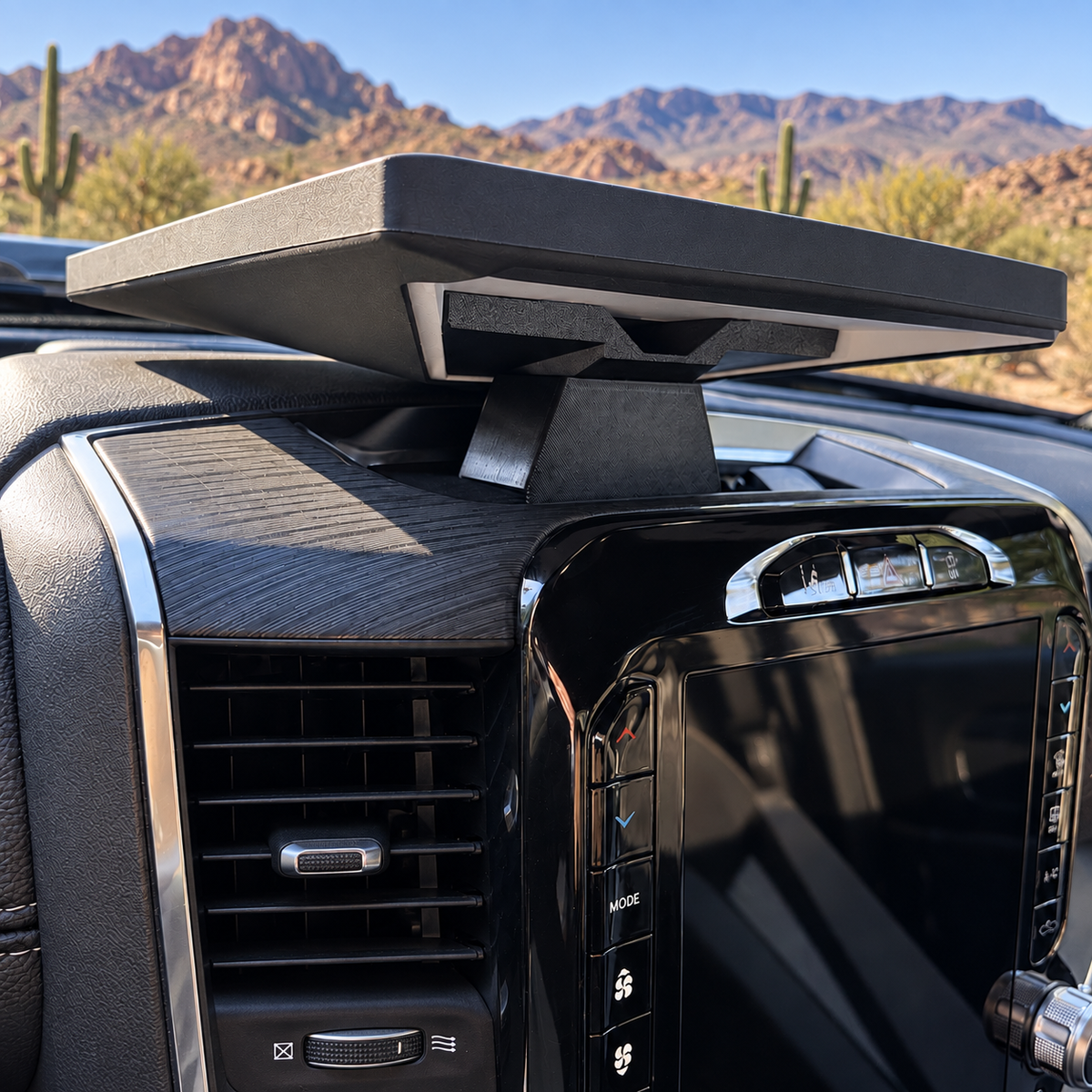

RAM Truck No-Drill Magnetic Dash Mount for Starlink Mini

Mount your Starlink Mini securely above the dash of your RAM truck—without drilling permanent holes in your vehicle.

The Mohave Custom Design magnetic dash mount provides a clean, removable mounting solution for compatible RAM truck dashboards.

Low-profile steel base plates attach to a suitable flat dashboard surface using 3M VHB adhesive. Once installed, the complete Starlink Mini mount attaches magnetically and can be removed in seconds.

Confirm Your Correct Size

Measure your available flat mounting area before ordering.

RAM dashboard layouts vary by model year, trim, screen configuration, and equipment package.

1.8" × 3.75" (45 × 95 mm)
Designed for dashboards with less available mounting space. Requires a flat mounting surface at least 1.8" × 3.75" (45 × 95 mm). Uses two compact 43 mm heavy-duty magnets.

Physical measurement of your dashboard is the final fitment check. The entire mounting footprint must sit on a flat surface for secure attachment.

Why You’ll Like It

• No drilling: No permanent holes or dashboard modification.
• Quick magnetic attachment: Install or remove the complete Starlink Mini mount in seconds.
• Strong magnetic mounting: Uses two compact 43 mm magnets.
• Clean dashboard position: Keeps the Starlink Mini elevated and neatly positioned above the dash.
• Built for vehicle interiors: Manufactured from UV- and heat-resistant black ASA.
• Designed specifically for Starlink Mini: Dedicated mounting without bulky universal brackets.

What’s Included

• Starlink Mini mounting bracket
• Dash mounting base
• Two 43 mm heavy-duty magnets
• Two 3M VHB-backed steel mounting plates
• 1/4"-20 mounting bolt and washer

Starlink Mini is not included.

Installation

Quick, no-drill installation.

1. Measure your dashboard and confirm the mounting footprint fits completely on a flat surface.
2. Test-fit the mount and steel plates before removing any adhesive backing.
3. Thoroughly clean the mounting surface with isopropyl alcohol and allow it to dry.
4. Apply adhesion promoter and allow it to dry for approximately 5 minutes until tacky.
5. Remove the 3M VHB backing.
6. Position the steel base plates and press very firmly into place.
7. Allow the adhesive to cure before applying maximum load.
8. Attach the magnetic mount and confirm the Starlink Mini is secure before driving.

At room temperature, 3M VHB typically reaches approximately 50% bond strength after 20 minutes, 90% after 24 hours, and full bond strength after approximately 72 hours.

Download Installation Instructions

Download Complete 3M VHB Application Instructions

Fitment Questions?

Not sure what you need? Contact us before ordering and we’ll help you determine the correct size.

No-drill installation · Made in Arizona

Ships in 2–3 business days · Fitment help available
